Slavie 39

Slavie 39; Sigma-Radio, Ing. B. (ID = 286273) Radio
Slavie 39; Sigma-Radio, Ing. B. (ID = 285513) Radio Slavie 39; Sigma-Radio, Ing. B. (ID = 285514) Radio

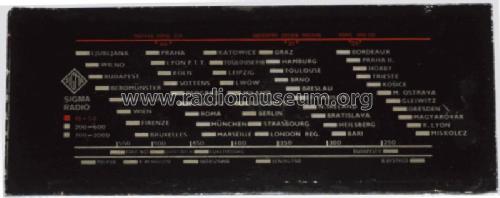

Slavie 39; Sigma-Radio, Ing. B. (ID = 285515) Radio Slavie 39; Sigma-Radio, Ing. B. (ID = 1518491) Radio
Use red slider bar for more.

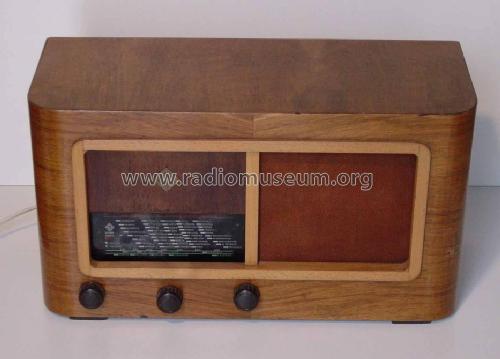

Slavie 39; Sigma-Radio, Ing. B. (ID = 285513) Radio
Sigma-Radio, Ing. B.: Slavie 39 [Radio] ID = 285513 933x671
Select picture or schematic to display from thumbnails on the right and click for download.
For model Slavie 39, Sigma-Radio, Ing. B. Szathmary; Prag

Country:  Czechoslovakia
Manufacturer / Brand:  Sigma-Radio, Ing. B. Szathmary; Prag
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 VL4 1801
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Slavie 39 - Sigma-Radio, Ing. B. Szathmary
Material Wooden case
Notes 1801 soll wahrsch. 1805 sein, da 1801 nur 30 mA; Heizung Endröhre an Primär-Anzapfung Netztrafo!!
Price in first year of sale 1'240.00 CSK
External source of data Erb
Source of data Ceskoslovenske prijimace 1933-1945, Baudys 1947


All listed radios etc. from Sigma-Radio, Ing. B. Szathmary; Prag
Here you find 48 models, 24 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
