FM / MW 2-Band Radio Cassette Recorder KC-2301

FM / MW 2-Band Radio Cassette Recorder KC-2301; Silvano, Kyoei (ID = 1872347) Radio FM / MW 2-Band Radio Cassette Recorder KC-2301; Silvano, Kyoei (ID = 1872348) Radio
FM / MW 2-Band Radio Cassette Recorder KC-2301; Silvano, Kyoei (ID = 1872476) Radio
Use red slider bar for more.

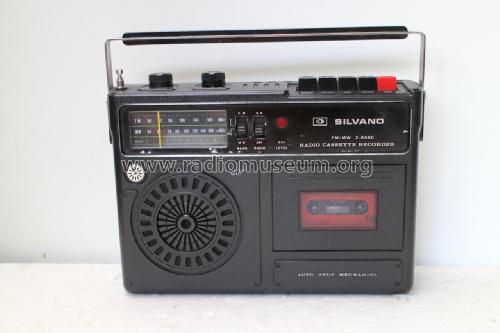

FM / MW 2-Band Radio Cassette Recorder KC-2301; Silvano, Kyoei (ID = 1872347) Radio
Silvano, Kyoei: FM / MW 2-Band Radio Cassette Recorder KC-2301 [Radio] ID = 1872347 1280x853
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM / MW 2-Band Radio Cassette Recorder KC-2301, Silvano, Kyoei Electronics Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Silvano, Kyoei Electronics Co. Ltd.; Tokyo
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / AC 110-120; 220-240 / D: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FM / MW 2-Band Radio Cassette Recorder KC-2301 - Silvano, Kyoei Electronics Co.
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 215 x 70 mm / 11.8 x 8.5 x 2.8 inch
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)

Model page created by Manuel Albano Neves. See "Data change" for further contributors.



All listed radios etc. from Silvano, Kyoei Electronics Co. Ltd.; Tokyo
Here you find 11 models, 11 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
