IC 3 Band Radio KC-3010

IC 3 Band Radio KC-3010; Silvano, Kyoei (ID = 1603614) Radio IC 3 Band Radio KC-3010; Silvano, Kyoei (ID = 1603616) Radio
IC 3 Band Radio KC-3010; Silvano, Kyoei (ID = 1603617) Radio
Use red slider bar for more.
IC 3 Band Radio KC-3010; Silvano, Kyoei (ID = 1603614) Radio

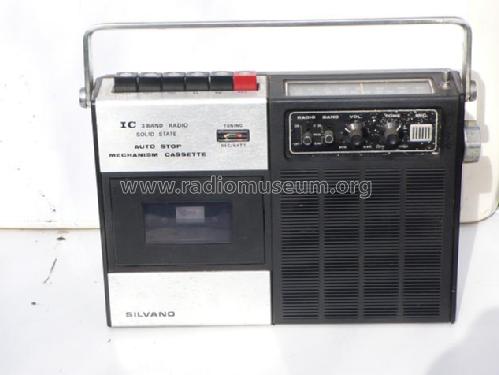

Silvano, Kyoei: IC 3 Band Radio KC-3010 [Radio] ID = 1603614 634x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model IC 3 Band Radio KC-3010, Silvano, Kyoei Electronics Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Silvano, Kyoei Electronics Co. Ltd.; Tokyo
Year: 1978 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220/ 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1 W (1.1 W max.)
from Radiomuseum.org Model: IC 3 Band Radio KC-3010 - Silvano, Kyoei Electronics Co.
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 225 x 80 mm / 12.6 x 8.9 x 3.1 inch
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Price in first year of sale 2'500.00 pte

Model page created by Manuel Albano Neves. See "Data change" for further contributors.



All listed radios etc. from Silvano, Kyoei Electronics Co. Ltd.; Tokyo
Here you find 11 models, 11 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
