Pocket Super PC-61
Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya
- Country
- Japan
- Manufacturer / Brand
- Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 322022
-
- alternative name: Shin-Shirasuna Electric Corp. || Shirasuna Denki Mfg. Co. Ltd. || Shirasuna (Shin) Electric Corp.
- Brand: Plata (brand)
- Number of Tubes
- 3
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1.5 & 45 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

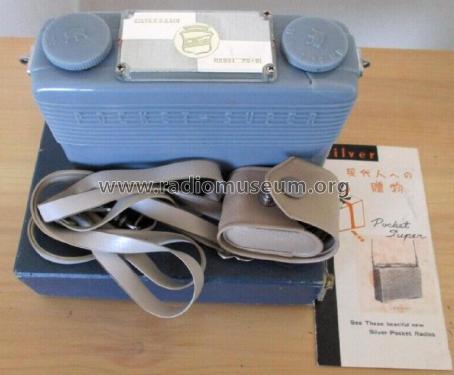

- Model: Pocket Super PC-61 - Silver Brand - Shin-Shirasuna
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 150 x 100 x 45 mm / 5.9 x 3.9 x 1.8 inch
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Gary Cowans. See "Data change" for further contributors.
