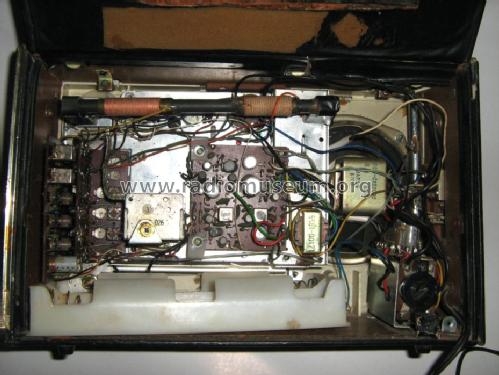

5 Band All Transistor 9S-61
Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya
- Country
- Japan
- Manufacturer / Brand
- Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya
- Year
- 1972 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 155864
-
- alternative name: Shin-Shirasuna Electric Corp. || Shirasuna Denki Mfg. Co. Ltd. || Shirasuna (Shin) Electric Corp.
- Brand: Plata (brand)
Kaunas Lithuania
- Number of Transistors
- 9
- Semiconductors
- unknown_tr unknown_tr 2SA12 2SA12 2SB75 2SB75 2SB77 unknown_tr unknown_tr
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Line / Batteries (any type) / 120-240 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5 Band All Transistor 9S-61 - Silver Brand - Shin-Shirasuna
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 305 x 190 x 95 mm / 12 x 7.5 x 3.7 inch
- Notes
-
Wellenbereiche:
- MW = 530 - 1600 kHz
- SW1 = 1,6 - 4,5 MHz
- SW2 = 4,5 - 10 MHz
- SW3 = 10 - 20 MHz
- SW4 = 20 - 30 MHz.
Fine Tuning auf allen Bändern, schaltbare Beleuchtung.
- Net weight (2.2 lb = 1 kg)
- 2.750 kg / 6 lb 0.9 oz (6.057 lb)
- Author
- Model page created by Helmut Arzt. See "Data change" for further contributors.
