• Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 234837
    • alternative name: Shin-Shirasuna Electric Corp. || Shirasuna Denki Mfg. Co. Ltd. || Shirasuna (Shin) Electric Corp.
    • Brand: Plata (brand)

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 3 x 1,5 Volt

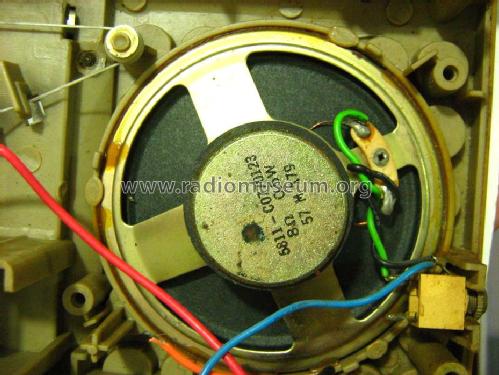

  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
  • Power out
  • 0.5 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

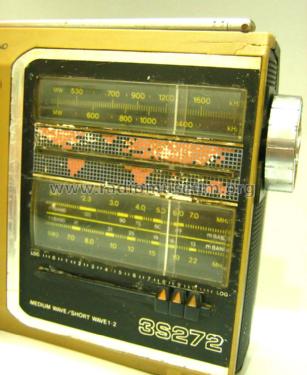

  • Model: Solid State 3 Band 3S-272 - Silver Brand - Shin-Shirasuna
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 190 x 140 x 55 mm / 7.5 x 5.5 x 2.2 inch
  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
