- Country
- Japan
- Manufacturer / Brand
- Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya
- Year
- 1980 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 188426
-
- alternative name: Shin-Shirasuna Electric Corp. || Shirasuna Denki Mfg. Co. Ltd. || Shirasuna (Shin) Electric Corp.
- Brand: Plata (brand)

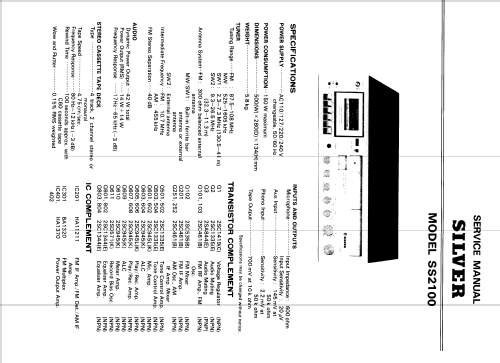

From Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 28
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 28 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: SS-2100 - Silver Brand - Shin-Shirasuna
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 134 x 280 mm / 19.7 x 5.3 x 11 inch
- Notes
- AM-FM Stereo Receiver with cassette tape deck. Power Output 14+14W RMS.
- Net weight (2.2 lb = 1 kg)
- 5.8 kg / 12 lb 12.4 oz (12.775 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.
