• Country
• Germany

• Manufacturer / Brand
• Simeto, PGH; Klingenthal (Sachsen)

• Year
• 1964 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 162157

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

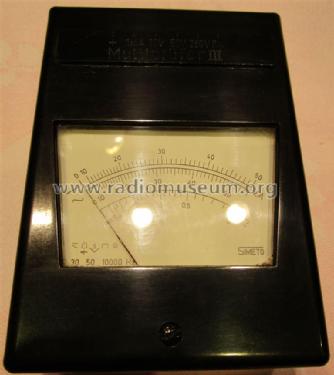

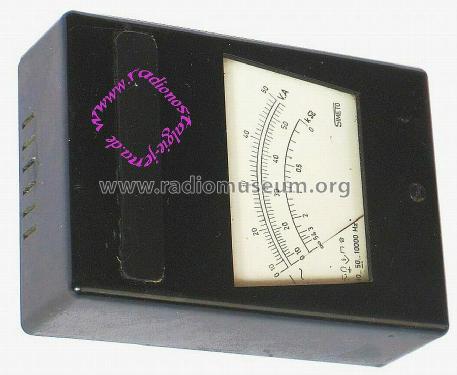

• Model: Multiprüfer III - Simeto, PGH; Klingenthal

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 78 x 35 x 110 mm / 3.1 x 1.4 x 4.3 inch

• Notes
• Modifizierte Bauform des Multiprüfer II für den Einsatz im Baukasten Transpoly.
  Messerkontakte des Baukastens greifen von hinten in das Messgerät, Anschlüsse oben abgedeckt. Separate Anschlüsse möglich für AC/DC 10 V; 1 - 20 - 200 mA; 1...5 kΩ.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
