Polytest 2

Polytest 2; Simeto Klingenthal, (ID = 846865) Equipment
Polytest 2; Simeto Klingenthal, (ID = 846247) Equipment Polytest 2; Simeto Klingenthal, (ID = 846248) Equipment
Polytest 2; Simeto Klingenthal, (ID = 846249) Equipment Polytest 2; Simeto Klingenthal, (ID = 2113371) Equipment
Polytest 2; Simeto Klingenthal, (ID = 1117436) Equipment Polytest 2; Simeto Klingenthal, (ID = 1117430) Equipment
Polytest 2; Simeto Klingenthal, (ID = 1117431) Equipment Polytest 2; Simeto Klingenthal, (ID = 1117433) Equipment
Polytest 2; Simeto Klingenthal, (ID = 1117434) Equipment Polytest 2; Simeto Klingenthal, (ID = 1117437) Equipment
Use red slider bar for more.
Polytest 2; Simeto Klingenthal, (ID = 846247) Equipment
Simeto Klingenthal,: Polytest 2 [Equipment] ID = 846247 635x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Polytest 2, Simeto Klingenthal, PGH; (Ostd):
eigener Schnappschuss

Country:  Germany
Manufacturer / Brand:  Simeto Klingenthal, PGH; (Ostd)
Year: 1982 ? Category: Service- or Lab Equipment
Main principle none
Wave bands - without
Details
Power type and voltage Dry Batteries / 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Polytest 2 - Simeto Klingenthal, PGH; Ostd
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 95 x 45 x 140 mm / 3.7 x 1.8 x 5.5 inch
Notes

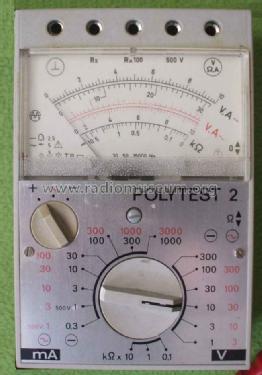

Spitzengelagertes Drehspulinstrument mit Kernmagnet ca. 150 µA; Messbereiche 1-500V, 0,3-3000 mA, 0-1 MΩ, =/~ umschaltbar, 3,2 kΩ/V (Gleichspannung) / 1 kΩ/V (Wechselspannung), 2,5/5 %, 5 Skalen. Separate Buchse für 500V. Feinsicherung 4 A träge. 2  Batterien 1,5 V AA LR6 zur Widerstandsmessung. Universalmessgerät, wurde in Bastlerfachgeschäften verkauft.

Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Price in first year of sale 125.00 Mark
Source of data - - Manufacturers Literature
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Steffen Guenther. See "Data change" for further contributors.



All listed radios etc. from Simeto Klingenthal, PGH; (Ostd)
Here you find 14 models, 14 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
