- Country
- United States of America (USA)
- Manufacturer / Brand
- Simplex Radio Co.; Philadelphia, PA and Sandusky, OH
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 253844
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 12.5 inch = 31.8 cm
- Material
- Wooden case
- from Radiomuseum.org

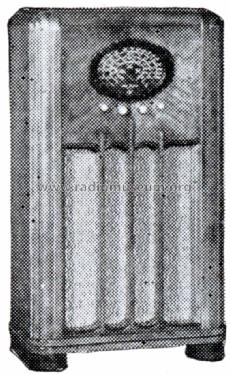

- Model: NT [Console] - Simplex Radio Co.;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 22 x 38 x 11 inch / 559 x 965 x 279 mm
- Notes
-
540-19,000 kc (15.8-555 meters). AVC. With magic eye.
- Net weight (2.2 lb = 1 kg)
- 46 lb 0 oz (46 lb) / 20.884 kg
- Price in first year of sale
- 69.95 $
- Literature/Schematics (3)
- -- Original prospect or advert (The Simplex Folder ca. for 1936.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
