• Country
• United States of America (USA)

• Manufacturer / Brand
• Simplex Radio Co.; Philadelphia, PA and Sandusky, OH

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18933

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 58 57 47 80

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

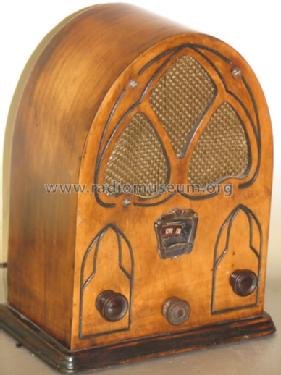

• Model: R AC World [47 tube var 1] - Simplex Radio Co.;

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 235 x 300 x 140 mm / 9.3 x 11.8 x 5.5 inch

• Notes

• See the two slightly different escutcheons between the two Stein pictures. We are not sure which is for this variant and to which the other belongs to. So we show here both until we are sure.

• Net weight (2.2 lb = 1 kg)
• 4.9 kg / 10 lb 12.7 oz (10.793 lb)

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Mentioned in
• Rider's Perpetual, Volume 2 = 1932 and before

• Literature/Schematics (1)
• Machine Age to Jet Age II (page 276.)

• Literature/Schematics (2)
• Cathedral & Tombstone Radios (page 250.)
