Volt-Ohm-Milliammeter 260 Series 5

Volt-Ohm-Milliammeter 260 Series 5; Simpson Electric Co. (ID = 335398) Equipment
Volt-Ohm-Milliammeter 260 Series 5; Simpson Electric Co. (ID = 1325994) Equipment Volt-Ohm-Milliammeter 260 Series 5; Simpson Electric Co. (ID = 144924) Equipment
Volt-Ohm-Milliammeter 260 Series 5; Simpson Electric Co. (ID = 144930) Equipment Volt-Ohm-Milliammeter 260 Series 5; Simpson Electric Co. (ID = 144935) Equipment
Volt-Ohm-Milliammeter 260 Series 5; Simpson Electric Co. (ID = 1465145) Equipment Volt-Ohm-Milliammeter 260 Series 5; Simpson Electric Co. (ID = 2234878) Equipment
Use red slider bar for more.
Volt-Ohm-Milliammeter 260 Series 5; Simpson Electric Co. (ID = 1325994) Equipment

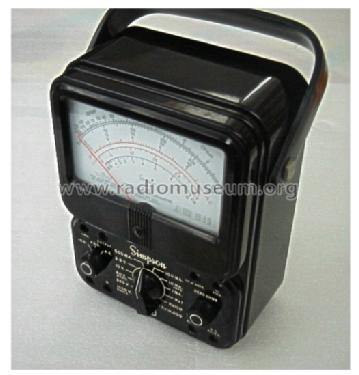

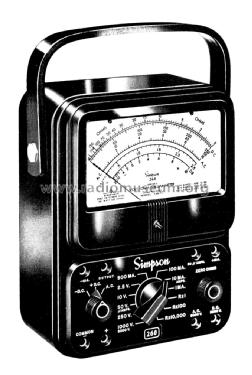

Simpson Electric Co.: Volt-Ohm-Milliammeter 260 Series 5 [Equipment] ID = 1325994 933x1385
Select picture or schematic to display from thumbnails on the right and click for download.
For model Volt-Ohm-Milliammeter 260 Series 5, Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI:
Operator's Manual 260 Series 5/5M, 1969

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1968/1969 Category: Service- or Lab Equipment
Details
Power type and voltage Dry Batteries / 1.5 & 9 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Volt-Ohm-Milliammeter 260 Series 5 - Simpson Electric Co.; Chicago,
Material Bakelite case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 5.25 x 7 x 3.125 inch / 133 x 178 x 79 mm
Notes

No mirrored dial. Banana jack type test leads. "Adapter lock" for use with "Add-A-Tester" accessories. Rated circuit-to-ground voltage 1000V AC/DC max.

Batteries: 1x "D" type (1.5 V), 4x "AA" type (1.5 V), accessible after removing the devices' back cover.

Measuring ranges

DC Volt: Ranges 250 mV, 2.5V, 10V, 50V, 250V, 500V, 1000V; Accuracy 2% of full scale
AC Volt: Ranges 2.5V, 10V, 25V, 50V, 250V, 1000V; Accuracy 3% of full scale
dB: 5 Ranges -20 to +50dB; Reference 0dB=1mW into 600Ω
DC Ampere: Ranges 50μA, 1mA, 10mA, 100mA, 500mA, 10A; Accuracy 1.5% of full scale (50µA), 2.0% of full sclae (other); voltage drop between 250mV (50µA) and 500mV (500mA)
Ohms: Ranges Rx 1, Rx 100, Rx 10K; Accuracy 2.5° of arc (Rx1), 2.0° of arc (other)

Net weight (2.2 lb = 1 kg) 3 lb 0 oz (3 lb) / 1.362 kg
