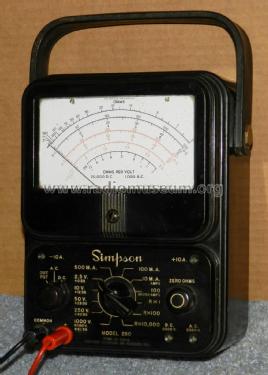

Volt-Ohm-Milliammeter (High Sensitivity Set Tester) 260 (260RT)

Volt-Ohm-Milliammeter 260 ; Simpson Electric Co. (ID = 2185431) Equipment Volt-Ohm-Milliammeter 260 ; Simpson Electric Co. (ID = 1076207) Equipment
Volt-Ohm-Milliammeter 260 ; Simpson Electric Co. (ID = 216142) Equipment Volt-Ohm-Milliammeter 260 ; Simpson Electric Co. (ID = 366013) Equipment
Volt-Ohm-Milliammeter 260 ; Simpson Electric Co. (ID = 216141) Equipment Volt-Ohm-Milliammeter 260 ; Simpson Electric Co. (ID = 1076208) Equipment
Volt-Ohm-Milliammeter 260 ; Simpson Electric Co. (ID = 1147122) Equipment Volt-Ohm-Milliammeter 260 ; Simpson Electric Co. (ID = 1147123) Equipment
Volt-Ohm-Milliammeter 260 ; Simpson Electric Co. (ID = 1149847) Equipment Volt-Ohm-Milliammeter 260 ; Simpson Electric Co. (ID = 1215312) Equipment
Use red slider bar for more.
Volt-Ohm-Milliammeter 260 ; Simpson Electric Co. (ID = 2185431) Equipment
Simpson Electric Co.: Volt-Ohm-Milliammeter 260 [Equipment] ID = 2185431 1400x1097
Select picture or schematic to display from thumbnails on the right and click for download.
For model Volt-Ohm-Milliammeter (High Sensitivity Set Tester) 260 (260RT), Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI:
USA Simpson Volt-Ohm-Milliammeter (High Sensitivity Set Tester) 260 (260RT)

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1939–1951 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 1x 1.5 & 2x 3 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Volt-Ohm-Milliammeter 260 - Simpson Electric Co.; Chicago,
Material Bakelite case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.25 x 6.75 x 3.2 inch / 133 x 171 x 81 mm
Notes

First model of the 260 series. All models without the "Adjust-A-View" handle (doubles as a stand for horizontal operation) go here - regardless of their different shapes. This model and the 260 Series 2 don't have a series designation in the meter scale. This begins from 260 Series 2A.

Pin type leads. Similar to Model 215.

Batteries: 2x Eveready #750 (3 V), 1x "C" type (1.5 V), soldered and accessible after dismantling the device.

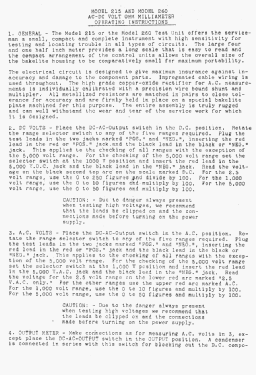

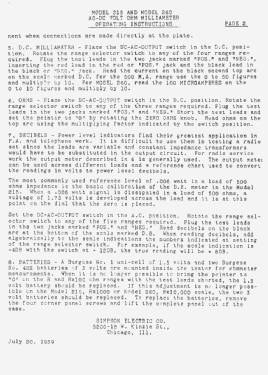

Measuring ranges

DC Volt: Ranges 2.5V, 10V, 50V, 250V, 1000V, 5000V; Accuracy 3% of full scale
AC Volt: Ranges 2.5V, 10V, 50V, 250V, 1000V, 5000V; Accuracy 5% of full scale
dB: 5 Ranges 0, +12, +26, +40, +53dB
DC Ampere: Ranges 100μA, 10mA, 100mA, 500mA
Ohms: Ranges Rx 1, Rx 100, Rx 10K

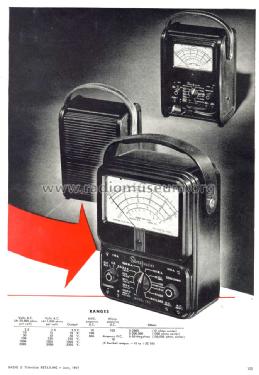

Also available as model 260RT with roll-top safety case ($43.75)

Net weight (2.2 lb = 1 kg) 3 lb 0 oz (3 lb) / 1.362 kg
Price in first year of sale 38.00 $

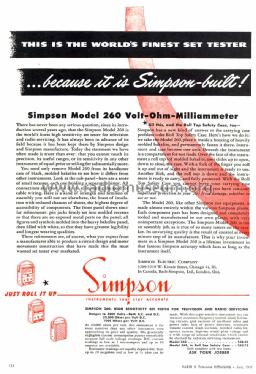

Mentioned in Ads in Electronic Industries, May 1942, Nov 1947

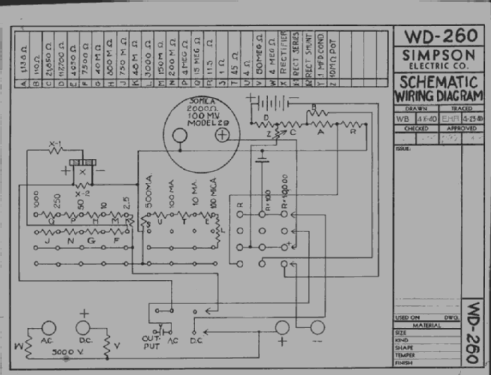

Literature/Schematics (1) 1951 Newark catalog Nº 51
Literature/Schematics (2) - - Manufacturers Literature (1951 catalog)
Literature/Schematics (3) Radio Retailing (Radio & Television R.) (Mar 1946 p.129; Sep 1946 p.109, 135; Jun 1947 p.124, 125)

Model page created by Vitor Oliveira. See "Data change" for further contributors.
