Signal Generator 340

Signal Generator 340; Simpson Electric Co. (ID = 1547086) Equipment
Signal Generator 340; Simpson Electric Co. (ID = 267795) Equipment Signal Generator 340; Simpson Electric Co. (ID = 642524) Equipment

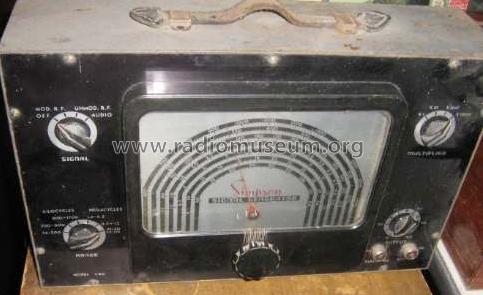

Signal Generator 340; Simpson Electric Co. (ID = 216139) Equipment Signal Generator 340; Simpson Electric Co. (ID = 642522) Equipment
Signal Generator 340; Simpson Electric Co. (ID = 642525) Equipment
Use red slider bar for more.
Signal Generator 340; Simpson Electric Co. (ID = 267795) Equipment
Simpson Electric Co.: Signal Generator 340 [Equipment] ID = 267795 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Signal Generator 340, Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1951 ?? Category: Service- or Lab Equipment
Valves / Tubes 3: 6J5GT 6K6GT 6X5GT
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Signal Generator 340 - Simpson Electric Co.; Chicago,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 10 x 16 x 6 inch / 254 x 406 x 152 mm
Notes

RF ranges 75 Kc to 120 Mc, fundamentals to 30 Mc. 9" dial. Ladder type step attenuator for RF output, few microvolt to approx. 0.15 volts. 400 cycle 30% modulation on below RF bands, 400 cycle AF signal. "High output" jack for the 120 Mc band.

Frequency bands:

  • 75 - 200 kilocycles
  • 200 - 600 kilocycles
  • 600 - 1700 kilocycles
  • 1.5 - 4.5 megacycles
  • 4.5 - 12 megacycles
  • 10 - 30 megacycles
  • 40 - 120 megacycles

Price in 1951, dealer's net.

Net weight (2.2 lb = 1 kg) 15.25 lb (15 lb 4 oz) / 6.924 kg
Price in first year of sale 84.50 $
Mentioned in - - Manufacturers Literature (User Manual)
Literature/Schematics (1) 1951 Newark catalog Nº 51
Literature/Schematics (2) -- Original prospect or advert (1951 catalog)

Model page created by Vitor Oliveira. See "Data change" for further contributors.
