Capacohmeter - In-circuit Capacitor Leakage Tester 383A

Capacohmeter - In-circuit Capacitor Leakage Tester 383A; Simpson Electric Co. (ID = 218657) Equipment

Capacohmeter - In-circuit Capacitor Leakage Tester 383A; Simpson Electric Co. (ID = 220917) Equipment
Capacohmeter - In-circuit Capacitor Leakage Tester 383A; Simpson Electric Co. (ID = 652954) Equipment Capacohmeter - In-circuit Capacitor Leakage Tester 383A; Simpson Electric Co. (ID = 652952) Equipment
Capacohmeter - In-circuit Capacitor Leakage Tester 383A; Simpson Electric Co. (ID = 652951) Equipment Capacohmeter - In-circuit Capacitor Leakage Tester 383A; Simpson Electric Co. (ID = 218552) Equipment
Capacohmeter - In-circuit Capacitor Leakage Tester 383A; Simpson Electric Co. (ID = 267830) Equipment Capacohmeter - In-circuit Capacitor Leakage Tester 383A; Simpson Electric Co. (ID = 652953) Equipment
Capacohmeter - In-circuit Capacitor Leakage Tester 383A; Simpson Electric Co. (ID = 1260135) Equipment
Use red slider bar for more.
Capacohmeter - In-circuit Capacitor Leakage Tester 383A; Simpson Electric Co. (ID = 652954) Equipment
Simpson Electric Co.: Capacohmeter - In-circuit Capacitor Leakage Tester 383A [Equipment] ID = 652954 500x374
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capacohmeter - In-circuit Capacitor Leakage Tester 383A, Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI:
EBAY #370237974023

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1957 ? Category: Service- or Lab Equipment
Valves / Tubes 2: 2050 1B3
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100-125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Capacohmeter - In-circuit Capacitor Leakage Tester 383A - Simpson Electric Co.; Chicago,
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

Applications:

  • measure leakage of defective paper, mica, or ceramic capacitors in ohms
  • indicate directyl the capacitany of good paper, mica or ceramic capacitors over a range 10.0 mmf to 10.0 mfd
  • detect many marginal capacitros by means of a pulse technique

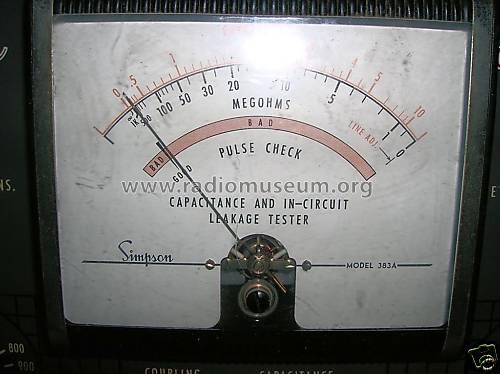

All tests are read directly on a 4.5" instrument. Many tests possible in-circuit.

5 capacity measuring ranges: 0.001 µF, 0.01 µF, 0.1 µF, 1 µF, 10 µF.

Price in first year of sale 89.95 $
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) - - Manufacturers Literature (Simpson Test Equipment bulletin no. 2058, 1957)

Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
