TV-FM Genescope 480

TV-FM Genescope 480; Simpson Electric Co. (ID = 1545910) Equipment
TV-FM Genescope 480; Simpson Electric Co. (ID = 1222181) Equipment TV-FM Genescope 480; Simpson Electric Co. (ID = 216137) Equipment
TV-FM Genescope 480; Simpson Electric Co. (ID = 350810) Equipment TV-FM Genescope 480; Simpson Electric Co. (ID = 1222182) Equipment
TV-FM Genescope 480; Simpson Electric Co. (ID = 1222183) Equipment TV-FM Genescope 480; Simpson Electric Co. (ID = 1222184) Equipment

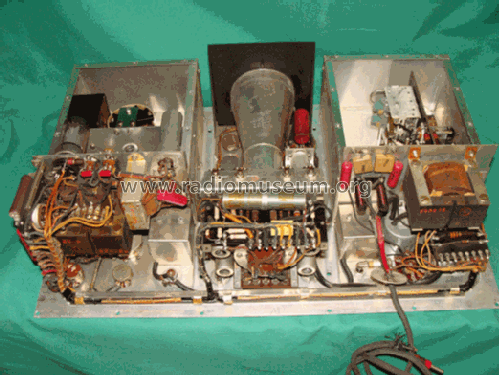

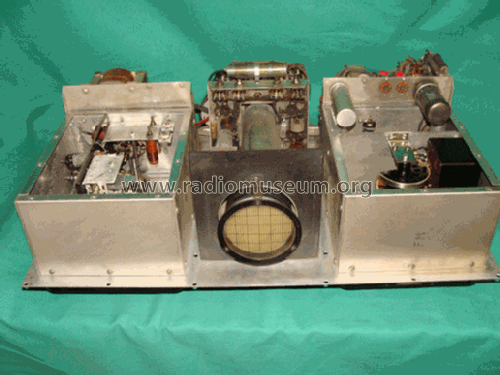

TV-FM Genescope 480; Simpson Electric Co. (ID = 1249316) Equipment TV-FM Genescope 480; Simpson Electric Co. (ID = 1249317) Equipment
TV-FM Genescope 480; Simpson Electric Co. (ID = 1249319) Equipment TV-FM Genescope 480; Simpson Electric Co. (ID = 1249320) Equipment
Use red slider bar for more.
TV-FM Genescope 480; Simpson Electric Co. (ID = 1222181) Equipment
Simpson Electric Co.: TV-FM Genescope 480 [Equipment] ID = 1222181 522x392
Select picture or schematic to display from thumbnails on the right and click for download.
For model TV-FM Genescope 480, Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1951 Category: Service- or Lab Equipment
Valves / Tubes 16: 6C4 6J6 6C4 6AK5 6C4 6AK5 6C4 6J6 6J6 6J6 6J6 6J6 5Z4 6X4 6X4 3KP1
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: TV-FM Genescope 480 - Simpson Electric Co.; Chicago,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14 x 22 x 7.5 inch / 356 x 559 x 191 mm
Notes

AM marker, FM sweep generator and crystal calibrator. 3" oscilloscope.

Marker generator:

  • Fundamental and second harmonic
  • Band A, 3.3 - 15.6 Mc
  • Band B, 15 - 76 Mc
  • Band C, 75 - 250 Mc
  • Unmodulated or amplitude modulated 30% at 400 cycles
  • 400 cycle audio signal
  • Output attenuated with 2 controls: 1 step, 1 continuous
  • Accuracy 0.1% using 5 Mc crystal

FM generator:

  • Band A, 2 - 120 Mc
  • Band B, 140 - 260 Mc
  • Dial marked for harmonic use for UHF
  • Sweep width continuously vriable, 0 though 15 Mc
  • Sweep rate 60 cycles (line frequency)

Price including 2 oscilloscope cables, 1 impedance matching output cable, 1 high frequency crystal probe and cable, manual and UHF instructions, in 1953: $475.00

Net weight (2.2 lb = 1 kg) 39 lb 0 oz (39 lb) / 17.706 kg
Price in first year of sale 387.00 $
Source of data -- Schematic
Mentioned in Advertisement 1953
Literature/Schematics (1) 1951 Newark catalog Nº 51

Model page created by Vitor Oliveira. See "Data change" for further contributors.
