Ammeter H.F. 350 MA. No. 1 Model 135T Thermocouple 8486

Ammeter H.F. 350 MA. No. 1 Model 135T Thermocouple 8486; Simpson Electric Co. (ID = 1708427) Equipment
Use red slider bar for more.
Ammeter H.F. 350 MA. No. 1 Model 135T Thermocouple 8486; Simpson Electric Co. (ID = 1708427) Equipment

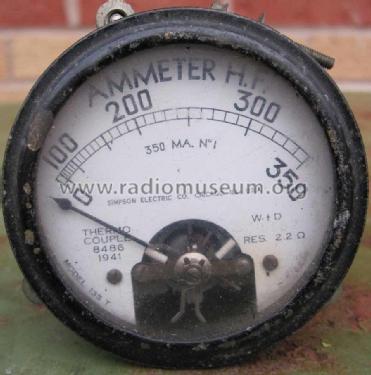

Simpson Electric Co.: Ammeter H.F. 350 MA. No. 1 Model 135T Thermocouple 8486 [Equipment] ID = 1708427 900x908
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ammeter H.F. 350 MA. No. 1 Model 135T Thermocouple 8486, Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI:
ebay.com #191282445589 seller autalycus

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1941 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Ammeter H.F. 350 MA. No. 1 Model 135T Thermocouple 8486 - Simpson Electric Co.; Chicago,
Material Various materials
Shape Chassis only or for «building in»
Notes

Thermocouple type Radio Frequency Ammeter, model 135T. Maximum current 350 mA, internal resistance 2.2 ohms. Two connector pins on the back, set 1 inch apart.

Similar/identical to unknown manufacturer model F.G.X2.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
