Digital Multimeter 464D

Digital Multimeter 464D; Simpson Electric Co. (ID = 1100788) Equipment

Digital Multimeter 464D; Simpson Electric Co. (ID = 1888426) Equipment

Digital Multimeter 464D; Simpson Electric Co. (ID = 1888427) Equipment

Digital Multimeter 464D; Simpson Electric Co. (ID = 1888428) Equipment

Digital Multimeter 464D; Simpson Electric Co. (ID = 1888429) Equipment

Digital Multimeter 464D; Simpson Electric Co. (ID = 1888430) Equipment

Digital Multimeter 464D; Simpson Electric Co. (ID = 1888431) Equipment

Digital Multimeter 464D; Simpson Electric Co. (ID = 1888432) Equipment

Digital Multimeter 464D; Simpson Electric Co. (ID = 1888433) Equipment

Digital Multimeter 464D; Simpson Electric Co. (ID = 1888434) Equipment
Digital Multimeter 464D; Simpson Electric Co. (ID = 1100785) Equipment Digital Multimeter 464D; Simpson Electric Co. (ID = 1100786) Equipment
Digital Multimeter 464D; Simpson Electric Co. (ID = 1100787) Equipment Digital Multimeter 464D; Simpson Electric Co. (ID = 1888525) Equipment
Use red slider bar for more.
Digital Multimeter 464D; Simpson Electric Co. (ID = 1100785) Equipment
Simpson Electric Co.: Digital Multimeter 464D [Equipment] ID = 1100785 800x422
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Multimeter 464D, Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI:

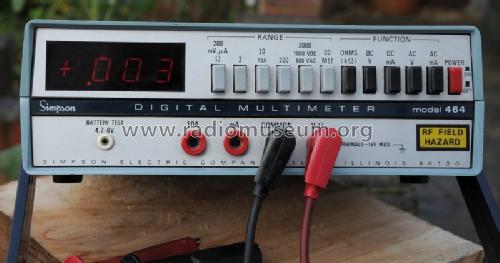

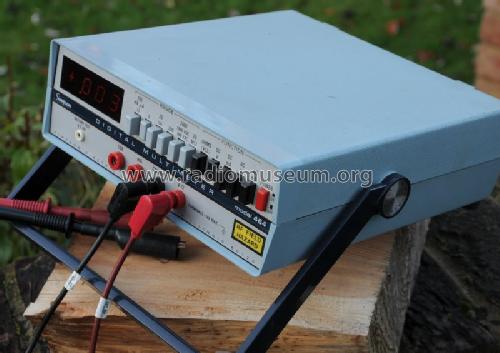

'RF Field Hazard' sticker added by owner, and is completely irrelevant! 'Battery Test' socket allows the meter to check the charge state of its own internal battery.

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1977 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 120; 240 / 4 x 1,2 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Digital Multimeter 464D - Simpson Electric Co.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 214 x 69 x 229 mm / 8.4 x 2.7 x 9 inch
Notes

3½ digit bench-top DMM, 7-segment red LED display, 0.1% DCV basic accuracy.
The "D" version incorporates 4 x "D"-size NiCd cells which are charged whenever the mains is connected, and this internal battery powers the meter for 8 hours.
The display flashes to indicate over-range when measuring resistance, but the reading remains accurate to +25% overload (no leading digit).

The mentioned price is according to 1985 Bach Simpson price list (excl. VAT).

Net weight (2.2 lb = 1 kg) 3 lb (3 lb 0 oz) / 1.362 kg
Price in first year of sale 290.00 UK £
Source of data - - Manufacturers Literature

Model page created by John Sykes. See "Data change" for further contributors.



All listed radios etc. from Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Here you find 136 models, 120 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Simpson Electric Co.: Digital Multimeter 464D
Threads: 1 | Posts: 3
Hits: 1445     Replies: 2
simpson: 464D; Digital Multimeter
John Sykes
15.Jan.13
  1

Hi:



I recently attempted to add an "as new"  price to this meter, having found a Simpson price list dated 1985. The model pre-dates 1985, but the current layout of the data page only allows a price to be entered against the heading "Price in first year of Sale". I think this is unnecessarily narrow, as many selling prices will be for purchases or evidence which is not from this "first year" . Perhaps you could re-title the data-field "Price when being sold new"



John





Martin Bösch
16.Jan.13
  2

Hallo John,
in fact, there is only one field for a price in our database structure. Sometimes, we only now about one price, so this can be entered in this field.
In case, in another catalogue, an earlier price turns up, the existing price can be replaced by the earlier one, until we arrive at the introduction price.

This price field gives you only an idea about the price, when the item was sold new, to compare it with a month's salary, e.g.

We know, that there might have been several prices of the same set in different stores, and even: there are prices in US$ (usually ham receivers have been much cheaper when sold in the USA then in Germany), in GB$, in Swiss Francs and German Mark, and so on.

Usually, a price in US$ might give a good idea, or the price in the country of origin (as long as the currency is not too exotic).

But in the end, you can make a proposal for the price which can be compared to a worker's salary in that period best - you can decide which price would fit best in the single field that we have in our database structure.

It won't be possible to have all price information from several countries, from the introduction price down to the prices with much discount as past year's model in several currencies and department stores vs. specialised shops ...
If you think, it might be really important, you could write a forum article on the topic (e.g. about the price of German Volksempfänger, because price was a political matter), or add several prices in the remarks field.

Kind regards Martin

John Sykes
16.Jan.13
  3

Martin:

I absolutely agree that there is an issue with the determining a single price, especially for equipment which may have been offered for sale in many countries. But that's not the point I'm trying to make: given the rather fluid nature of the price (by region, time-line etc), wouldn't it be more flexible to have the field labelled "Price when new" or similar, and then ask the person posting to add a qualifier as to where and when the price was valid?  I was very reluctant to add any data here, as I knew it was not the price in the first year: others might be similarly put off.

Regards

John
