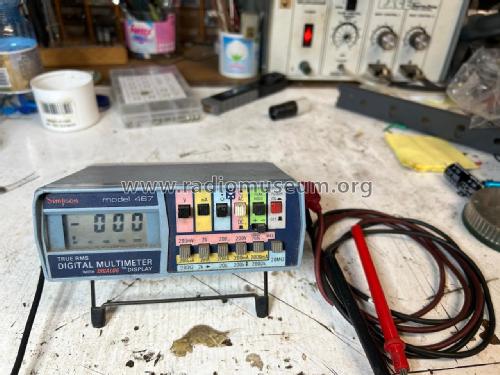

Digital Multimeter 467

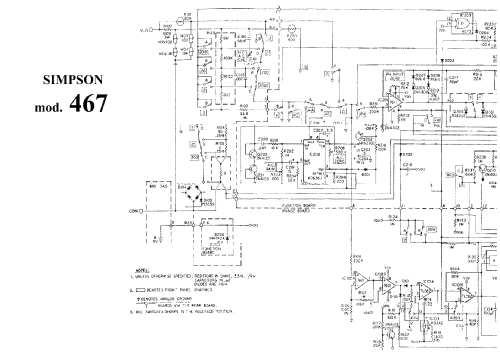

Digital Multimeter 467; Simpson Electric Co. (ID = 2576061) Equipment

Digital Multimeter 467; Simpson Electric Co. (ID = 2576063) Equipment
Use red slider bar for more.
Digital Multimeter 467; Simpson Electric Co. (ID = 2576061) Equipment
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1980 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Digital Multimeter 467 - Simpson Electric Co.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

True RMS digital multimeter. Characteristics:

  • DCV: 200mV, 2V, 20V, 200V, 1000V
  • ACV: 200mV, 2V, 20V, 200V, 750V
  • DCA: 200µA, 2mA, 20mA, 200mA, 2A
  • ACA: 200µA, 2mA, 20mA, 200mA, 2A
  • Ohms: 200Ω, 2kΩ , 20kΩ, 200kΩ, 2000kΩ, 20MΩ

Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
