Volt-Ohm-Milliammeter 262 Series 2 (262-2)

Volt-Ohm-Milliammeter 262 Series 2 ; Simpson Electric Co. (ID = 325275) Equipment
Volt-Ohm-Milliammeter 262 Series 2 ; Simpson Electric Co. (ID = 148306) Equipment Volt-Ohm-Milliammeter 262 Series 2 ; Simpson Electric Co. (ID = 325565) Equipment

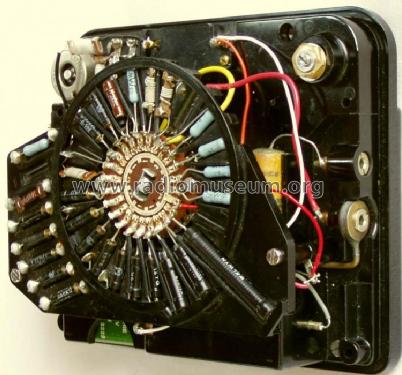

Volt-Ohm-Milliammeter 262 Series 2 ; Simpson Electric Co. (ID = 325567) Equipment
Use red slider bar for more.
Volt-Ohm-Milliammeter 262 Series 2 ; Simpson Electric Co. (ID = 148306) Equipment
Simpson Electric Co.: Volt-Ohm-Milliammeter 262 Series 2 [Equipment] ID = 148306 586x494
Select picture or schematic to display from thumbnails on the right and click for download.
For model Volt-Ohm-Milliammeter 262 Series 2 (262-2), Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1959 ?? Category: Service- or Lab Equipment
Details
Power type and voltage Dry Batteries / 1.5 & 22.5 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Volt-Ohm-Milliammeter 262 Series 2 - Simpson Electric Co.; Chicago,
Material Bakelite case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 185 x 150 x 75 mm / 7.3 x 5.9 x 3 inch
Notes

Messbereiche Spannung: DC 1,6 V; 8 V; 40 V; 160 V; 400 V; 1600 V - AC 3 V; 8 V; 40 V; 160 V; 800 V.
Messbereiche Strom: DC 80 µA; 160 µA; 1,6 mA; 16 mA; 160 mA; 1,6 A.
Messbereiche Widerstand: R × 1; 10; 100; 1 k; 10 k; 100 k.

2 batteries: one "D" cell, one Burgess U15E (Eveready 412, Ray-o-Vac 516).

Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Mentioned in - - Manufacturers Literature (User Manual)

Model page created by Alexander Küffer. See "Data change" for further contributors.
