Volt-Ohm-Microammeter 269 Series 3 (269-3)

Volt-Ohm-Microammeter 269 Series 3 ; Simpson Electric Co. (ID = 1431603) Equipment

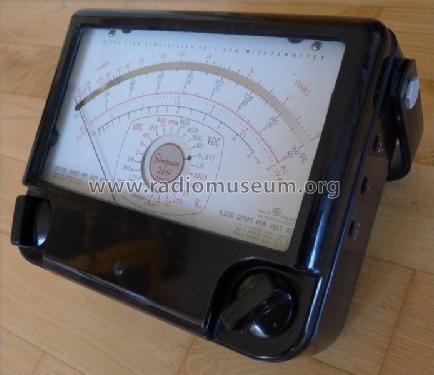

Volt-Ohm-Microammeter 269 Series 3 ; Simpson Electric Co. (ID = 956131) Equipment Volt-Ohm-Microammeter 269 Series 3 ; Simpson Electric Co. (ID = 1871911) Equipment
Volt-Ohm-Microammeter 269 Series 3 ; Simpson Electric Co. (ID = 1871912) Equipment Volt-Ohm-Microammeter 269 Series 3 ; Simpson Electric Co. (ID = 1871913) Equipment
Volt-Ohm-Microammeter 269 Series 3 ; Simpson Electric Co. (ID = 1871914) Equipment Volt-Ohm-Microammeter 269 Series 3 ; Simpson Electric Co. (ID = 1871915) Equipment
Use red slider bar for more.
Volt-Ohm-Microammeter 269 Series 3 ; Simpson Electric Co. (ID = 956131) Equipment

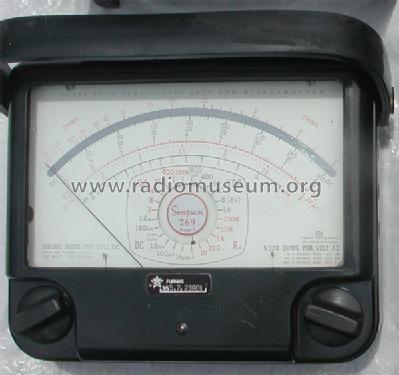

Simpson Electric Co.: Volt-Ohm-Microammeter 269 Series 3 [Equipment] ID = 956131 600x563
Select picture or schematic to display from thumbnails on the right and click for download.
For model Volt-Ohm-Microammeter 269 Series 3 (269-3), Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI:
series 3 multimeter

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1968 ?? Category: Service- or Lab Equipment

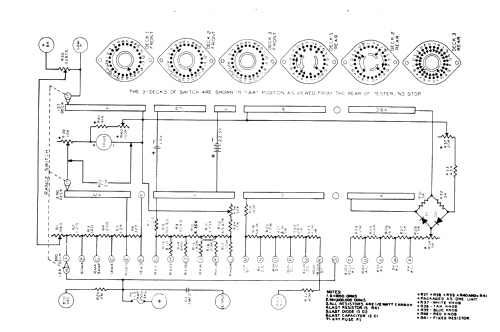

schematic requested
Wave bands - without
Details
Power type and voltage Dry Batteries / 1,5 & 22,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Volt-Ohm-Microammeter 269 Series 3 - Simpson Electric Co.; Chicago,
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 178 x 152 x 76 mm / 7 x 6 x 3 inch
Notes Ohms: 6 ranges x 1, x 10, x 100, x 1 k, x 10 k, x 100 k
VDC: 6 ranges 1.6, 8, 40, 160, 400, 800 V (0.8 & 1600 VDC external auxiliar jack)
VAC: 5 ranges 3, 8, 40, 160, 400 VAC (800 VAC external auxiliar jack)
DCA: 6 ranges 16 µA, 160 µA, 1.6 mA, 16 mA, 160 mA, 1,6 A (8 A external auxiliar jack)
Very high sensitivity: 100.000 ohms/V DC - 5000 ohms/V DC
7 inches big dial & anti parallaxe mirror scale
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
