Oscilloscope Calibrator 276

Oscilloscope Calibrator 276; Simpson Electric Co. (ID = 2124746) Equipment Oscilloscope Calibrator 276; Simpson Electric Co. (ID = 2124747) Equipment

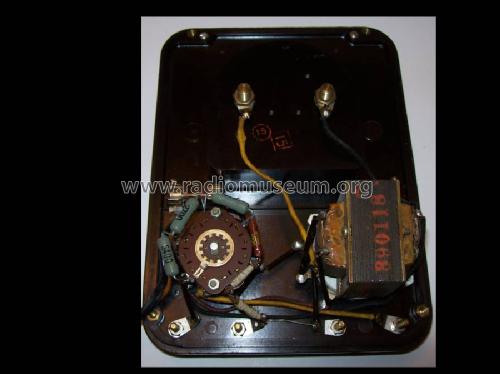

Oscilloscope Calibrator 276; Simpson Electric Co. (ID = 2124748) Equipment Oscilloscope Calibrator 276; Simpson Electric Co. (ID = 2124749) Equipment
Use red slider bar for more.

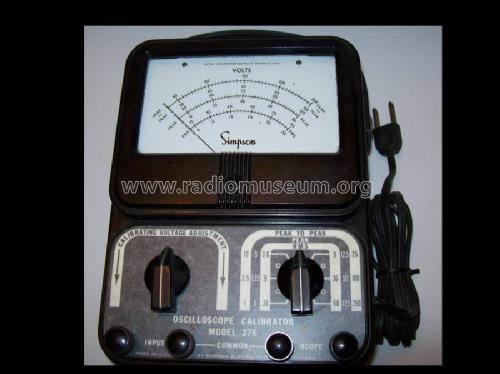

Oscilloscope Calibrator 276; Simpson Electric Co. (ID = 2124746) Equipment
Simpson Electric Co.: Oscilloscope Calibrator 276 [Equipment] ID = 2124746 900x674
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope Calibrator 276, Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1954 ? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscilloscope Calibrator 276 - Simpson Electric Co.; Chicago,
Material Bakelite case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.25 x 8 x 3.5 inch / 133 x 203 x 89 mm
Notes

Used  "To determine the voltage in an oscilloscope wave form".

Net weight (2.2 lb = 1 kg) 2 lb 11 oz (2.687 lb) / 1.220 kg
Price in first year of sale 29.50 US
Mentioned in Radio News (May 1954 page 14)

Model page created by Dennis Earl. See "Data change" for further contributors.
