• Country
• France

• Manufacturer / Brand
• SIR (S.I.R.) Société Industrielle Radioélectrique; Paris, Asnières

• Year
• 1938 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 275646

• Number of Tubes
• 5

• Valves / Tubes
• 6E8 6K7MG 6Q7G 25L6G 25Z6G

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12.7 cm = 5 inch

• Material
• Wooden case

• from Radiomuseum.org

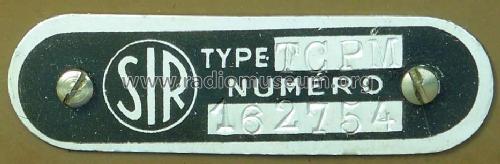

• Model: TCPM - SIR S.I.R. Société

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 275 x 200 x 180 mm / 10.8 x 7.9 x 7.1 inch

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Author
• Model page created by Roberto Gabba. See "Data change" for further contributors.

• Other Models

• Here you find 8 models, 5 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SIR (S.I.R.) Société Industrielle Radioélectrique; Paris, Asnières
