• Country
• Spain

• Manufacturer / Brand
• Skreibson; Barcelona

• Year
• 1970

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 198885

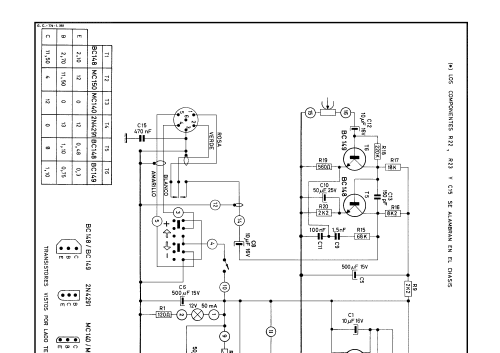

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BC149 BC148 MC150 BC148 MC140 2N4291 SD500 SD500 SD500

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Auto-Cassette AC 31 - Skreibson; Barcelona

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 142 x 64 x 172 mm / 5.6 x 2.5 x 6.8 inch

• Notes

• Skreibson Auto Cassette AC 31

  Adaptable a positivo o negativo a masa.
  Salida para conectar a radio de coche o amplificador externo.

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Mentioned in
• Anuncio ABC diciembre 1969

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
