Satellitenreceiver SDR301 [SDR30101]

SKT - Spreewald Kommunikationstechnik GmbH; Lübben

Data
Forum
Pictures
Collections

  • Year
  • 2005
  • Category
  • Digital terrestrial, Internet and SAT receiver (also analogue)
  • Radiomuseum.org ID
  • 297708

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • SAT-IF
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Satellitenreceiver SDR301 [SDR30101] - SKT - Spreewald
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 250 x 51 x 140 mm / 9.8 x 2 x 5.5 inch
  • Notes

  • Satellitenreceiver zum Empfang freier digitaler Radio- und Fernsehkanäle des Standards DVB-S/MPEG2.

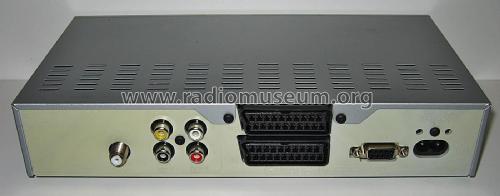

    Schnittstellen/Anschlüsse: IF-Input (F-Type), RS232, Video/Audio R/L (3x RCA), koaxialer S/PDIF-AC3-Ausgang (RCA), TV-SCART, VCR-SCART.
    Leistungsaufnahme: max. 25 W.

    Made in Germany.

  • Net weight (2.2 lb = 1 kg)
  • 0.630 kg / 1 lb 6.2 oz (1.388 lb)
  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
