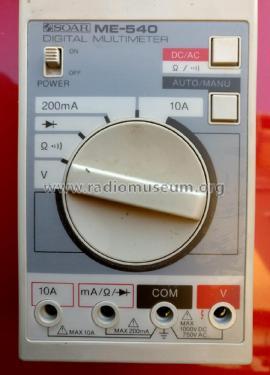

Digital Multimeter ME 540

Digital Multimeter ME 540; Soar Corporation; (ID = 2359987) Equipment Digital Multimeter ME 540; Soar Corporation; (ID = 2359989) Equipment
Digital Multimeter ME 540; Soar Corporation; (ID = 2359990) Equipment Digital Multimeter ME 540; Soar Corporation; (ID = 2359991) Equipment
Digital Multimeter ME 540; Soar Corporation; (ID = 2359992) Equipment Digital Multimeter ME 540; Soar Corporation; (ID = 2359993) Equipment
Digital Multimeter ME 540; Soar Corporation; (ID = 2359994) Equipment Digital Multimeter ME 540; Soar Corporation; (ID = 2359995) Equipment
Digital Multimeter ME 540; Soar Corporation; (ID = 2359996) Equipment Digital Multimeter ME 540; Soar Corporation; (ID = 2359997) Equipment
Use red slider bar for more.
Digital Multimeter ME 540; Soar Corporation; (ID = 2359987) Equipment
Soar Corporation;: Digital Multimeter ME 540 [Equipment] ID = 2359987 1116x2037
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Multimeter ME 540, Soar Corporation; Hanishinagun:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Soar Corporation; Hanishinagun
Year: 1980 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details

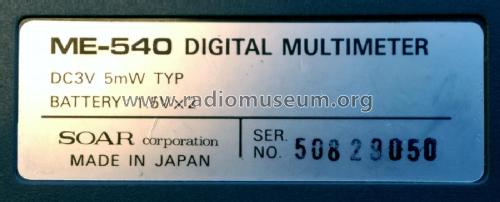

Power type and voltage Dry Batteries / AA: 2 × 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Digital Multimeter ME 540 - Soar Corporation; Hanishinagun
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 77 x 157 x 30 mm / 3 x 6.2 x 1.2 inch
Notes

Automatische, und manuelle Bereichsauswahl.
Spannung DC bis 1000V, AC bis 750V
Strom DC, AC bis 200 mA and 10 A.
Widerstandsmessung, Durchgangstest mit Beeper.

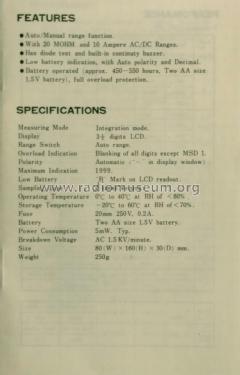

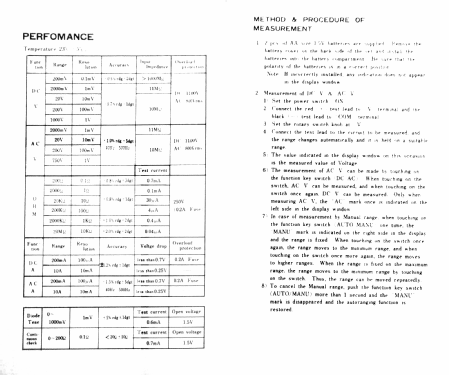

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
