Cigalor
Use red slider bar for more.

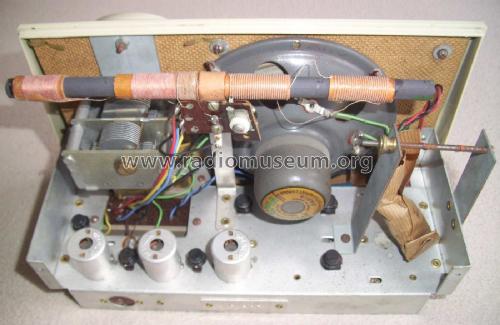

Socradel, Société: Cigalor [Radio] ID = 671507 933x652
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1959 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: |
|---|
| Main principle | Superheterodyne (common); 2 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Cigalor - Socradel, Société Française de |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 260 x 157 x 120 mm / 10.2 x 6.2 x 4.7 inch |
| Notes | 6 transistors Thomson à douilles. 3 gammes d'ondes dont 1 bande étalée (BE). Antenne ferrite, prise antenne extérieure. Malgré la présence d'une touche BE, ce gamme ne figure pas dans le cadran. Version transistorisée du modèle Cigale. |
| Net weight (2.2 lb = 1 kg) | 2.2 kg / 4 lb 13.5 oz (4.846 lb) |
Model page created by Bernhard Nagel. See "Data change" for further contributors.
All listed radios etc. from Socradel, Société Française de Constructions Radio-Électriques; Paris, Courbevoie, Rueil-Malmaison
Here you find 121 models, 79 with images and 24 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
