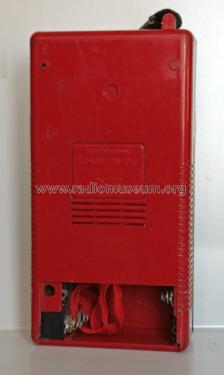

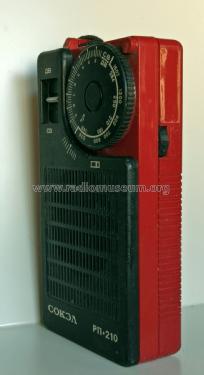

Sokol - Сокол RP-210 - РП-210

Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 1064958) Radio

Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 1064959) Radio
Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 2291403) Radio Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 2291405) Radio
Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 2291408) Radio Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 2291410) Radio
Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 2291409) Radio Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 2291407) Radio
Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 2291404) Radio Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 2127489) Radio
Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 2127490) Radio Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 2127491) Radio
Use red slider bar for more.
Sokol - Сокол RP-210 - РП-210; Moscow industrial (ID = 2291403) Radio
Moscow industrial: Sokol - Сокол RP-210 - РП-210 [Radio] ID = 2291403 1400x1866
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sokol - Сокол RP-210 - РП-210, Moscow industrial union 'TEMP' RUS:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Russian Federation
Manufacturer / Brand:  Moscow industrial union "TEMP" RUS
alternative name

Moscow Electrotrust workshop
Brand
Sokol (Cokoa)
Year: 1991 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out
from Radiomuseum.org Model: Sokol - Сокол RP-210 - РП-210 - Moscow industrial union "TEMP"
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 82 x 162 x 38 mm / 3.2 x 6.4 x 1.5 inch
Notes Coverage of Sokol (Сокол) RP-210:
148,5...283,5 kHz and 536,5...1605,5 kHz.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Howard Craven. See "Data change" for further contributors.



All listed radios etc. from Moscow industrial union "TEMP" RUS
Here you find 1 models, 1 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
