FC-75AT

FC-75AT; Yaesu-Musen Co. Ltd. (ID = 530823) Amateur-D FC-75AT; Yaesu-Musen Co. Ltd. (ID = 530824) Amateur-D
Use red slider bar for more.
FC-75AT; Yaesu-Musen Co. Ltd. (ID = 530823) Amateur-D

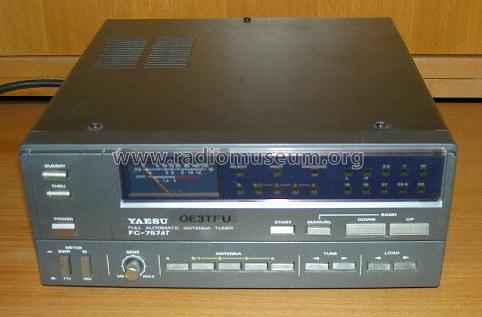

Yaesu-Musen Co. Ltd.: FC-75AT [Amateur-D] ID = 530823 482x317
Select picture or schematic to display from thumbnails on the right and click for download.
For model FC-75AT, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1984 ? Category: Amateur Equipment (Other, but not Key)
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 13,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: FC-75AT - Yaesu-Musen Co. Ltd.; Tokyo
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 238 x 94 x 241 mm / 9.4 x 3.7 x 9.5 inch
Notes Yaesu Automatic-Tuner FC-757AT.
Vollautomatisches Antennen-Anpassgerät für Leistungen bis max. 150 Watt. Bandbreite: 1,8-30 MHz. Frequenz: 10-160 m. Antenneneingang: 50 Ohm. Ausgang 10-250 Ohm. Anzeigeinstrument und Leuchtdioden.
Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
Price in first year of sale 898.00 DM
Collectors' prices
Source of data -- Original prospect or advert
Mentioned in RICOFUNK-Katalog 1984

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
