CB-Handfunksprechgerät TS-5624 SC
Use red slider bar for more.

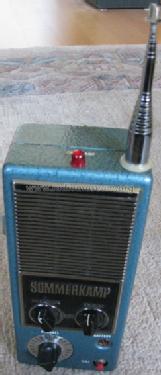

Sommerkamp: CB-Handfunksprechgerät TS-5624 SC [Citizen] ID = 1322788 244x567
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Sommerkamp El. Schweiz | ||||
|---|---|---|---|---|---|
| Year: 1974 ?? | Category: Citizen Band Equipment |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Power type and voltage | Dry Batteries / 8 × 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: CB-Handfunksprechgerät TS-5624 SC - Sommerkamp |
| Material | Metal case |
| Dimensions (WHD) | 75 x 220 x 56 mm / 3 x 8.7 x 2.2 inch |
| Notes | CB-Handfunksprechgerät. 24 Kanäle im 27-MHz-Band. AM. HF-Output: 5 Watt. Teleskopantenne. |
| Net weight (2.2 lb = 1 kg) | 1.5 kg / 3 lb 4.9 oz (3.304 lb) |
| Price in first year of sale | 460.00 DM |
| Source of data | -- Original prospect or advert |
Model page created by Karlheinz Fischer. See "Data change" for further contributors.
