TS-727G

TS-727G; Sommerkamp (ID = 2579392) Citizen
TS-727G; Sommerkamp (ID = 399726) Citizen TS-727G; Sommerkamp (ID = 1381952) Citizen
TS-727G; Sommerkamp (ID = 1381953) Citizen TS-727G; Sommerkamp (ID = 1810042) Citizen
TS-727G; Sommerkamp (ID = 2202934) Citizen TS-727G; Sommerkamp (ID = 2202935) Citizen
TS-727G; Sommerkamp (ID = 2202936) Citizen TS-727G; Sommerkamp (ID = 2202937) Citizen
Use red slider bar for more.
TS-727G; Sommerkamp (ID = 399726) Citizen
Sommerkamp: TS-727G [Citizen] ID = 399726 700x219
Select picture or schematic to display from thumbnails on the right and click for download.
For model TS-727G, Sommerkamp

Country:  Germany
Manufacturer / Brand:  Sommerkamp
alternative name

Sommerkamp El. Schweiz
Year: 1970 Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) 14:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12-14 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: TS-727G - Sommerkamp
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 122 x 35 x 175 mm / 4.8 x 1.4 x 6.9 inch
Notes

Sommerkamp CB-Mobilfunkgerät TS-727G.

6 Kanäle im Bereich 26,9–29,5 MHz; Kanalumschaltung mechanisch; AM; Pout: 0,5 W.

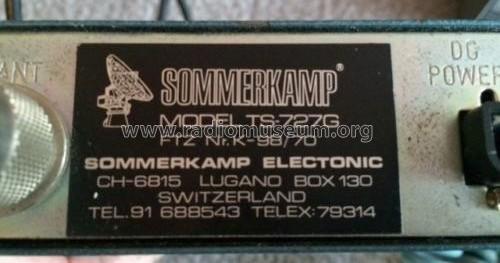

FTZ-Nr. K98/70

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 430.00 DM
Source of data -- Original prospect or advert
Mentioned in Katalog Hannes Bauer, 1972

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
