CB-Mobilfunkgerät TS-340 DX

CB-Mobilfunkgerät TS-340 DX; Sommerkamp (ID = 460524) Citizen

CB-Mobilfunkgerät TS-340 DX; Sommerkamp (ID = 460525) Citizen

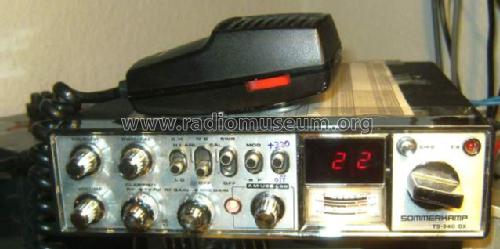

CB-Mobilfunkgerät TS-340 DX; Sommerkamp (ID = 2055283) Citizen CB-Mobilfunkgerät TS-340 DX; Sommerkamp (ID = 1135163) Citizen
CB-Mobilfunkgerät TS-340 DX; Sommerkamp (ID = 1135164) Citizen
Use red slider bar for more.
CB-Mobilfunkgerät TS-340 DX; Sommerkamp (ID = 2055283) Citizen
Sommerkamp: CB-Mobilfunkgerät TS-340 DX [Citizen] ID = 2055283 1219x676
Select picture or schematic to display from thumbnails on the right and click for download.
For model CB-Mobilfunkgerät TS-340 DX, Sommerkamp

Country:  Germany
Manufacturer / Brand:  Sommerkamp
alternative name

Sommerkamp El. Schweiz
Year: 1979 ? Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) 22:
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: CB-Mobilfunkgerät TS-340 DX - Sommerkamp
Material Metal case
Dimensions (WHD) 230 x 55 x 205 mm / 9.1 x 2.2 x 8.1 inch
Notes ICs: 10.
CB-Mobilgerät. 40 bzw 80 Kanäle im Bereich 26,965-27,405 MHz und 27,665-28,105 MHz. PLL-Synthesizer. HF-Output: 6 Watt bei AM, 18 Watt bei SSB.
Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Price in first year of sale 515.00 DM
Collectors' prices
Source of data -- Original prospect or advert

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
