Radiotelefon TS 510 G

Radiotelefon TS 510 G; Sommerkamp (ID = 1117096) Citizen Radiotelefon TS 510 G; Sommerkamp (ID = 1117097) Citizen

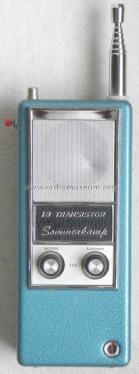

Radiotelefon TS 510 G; Sommerkamp (ID = 1117099) Citizen Radiotelefon TS 510 G; Sommerkamp (ID = 1117101) Citizen

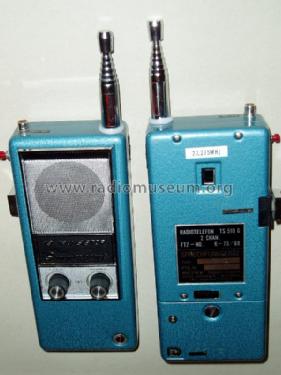

Radiotelefon TS 510 G; Sommerkamp (ID = 1381949) Citizen Radiotelefon TS 510 G; Sommerkamp (ID = 1381950) Citizen
Use red slider bar for more.
Radiotelefon TS 510 G; Sommerkamp (ID = 1117096) Citizen
Sommerkamp: Radiotelefon TS 510 G [Citizen] ID = 1117096 933x668
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiotelefon TS 510 G, Sommerkamp

Country:  Germany
Manufacturer / Brand:  Sommerkamp
alternative name

Sommerkamp El. Schweiz
Year: 1968 Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) 13:
Main principle Transceiver; ZF/IF 455 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Dry Batteries / 8 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out
from Radiomuseum.org Model: Radiotelefon TS 510 G - Sommerkamp
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 90 x 210 x 60 mm / 3.5 x 8.3 x 2.4 inch
Notes Handfunkgerät für den 27-MHz-CB-Bereich.
Zwei Kanäle, Amplidudenmodulation.
Tonruftaste, Anschlußmöglichkeiten für Hörer, Mikrofon, externe Antenne.
FTZ-Nr.: K-73/68.
Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)

Model page created by Siegfried Droese. See "Data change" for further contributors.
