SK-22R

SK-22R; Sommerkamp (ID = 474531) Amat TRX SK-22R; Sommerkamp (ID = 474530) Amat TRX
SK-22R; Sommerkamp (ID = 474532) Amat TRX SK-22R; Sommerkamp (ID = 474539) Amat TRX
Use red slider bar for more.
SK-22R; Sommerkamp (ID = 474531) Amat TRX

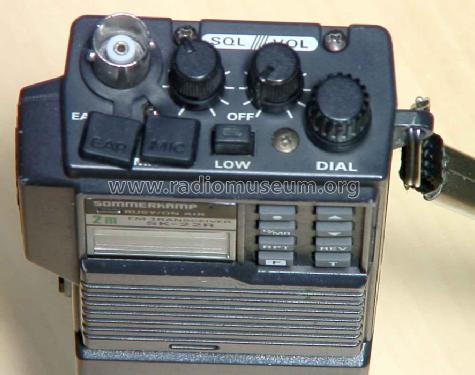

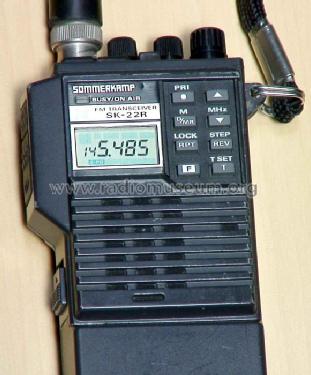

Sommerkamp: SK-22R [Amat TRX] ID = 474531 582x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model SK-22R, Sommerkamp

Country:  Germany
Manufacturer / Brand:  Sommerkamp
alternative name

Sommerkamp El. Schweiz
Year: 1987 ?? Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superhet, double/triple conversion; ZF/IF 10700/455 kHz; 1 AF stage(s)
Tuned circuits 4 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6-15 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1 inch = 2.5 cm
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: SK-22R - Sommerkamp
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 55 x 139 x 32 mm / 2.2 x 5.5 x 1.3 inch
Notes

Sommerkamp Handheld-VHF-FM-Transceiver SK-22R.
Frequency range: 144-146 MHz; CPU-controlled; RX-Sensitivity: better then 60 dB for 12 dB SINAD; Pout: 5 W.

See also Yaesu FT-23R

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Source of data -- Original-techn. papers.

Model page created by Jordi Cardona Serra. See "Data change" for further contributors.
