Transmitter FL-101

Transmitter FL-101; Sommerkamp (ID = 2610958) Amateur-T Transmitter FL-101; Sommerkamp (ID = 2610959) Amateur-T
Transmitter FL-101; Sommerkamp (ID = 2610961) Amateur-T
Use red slider bar for more.

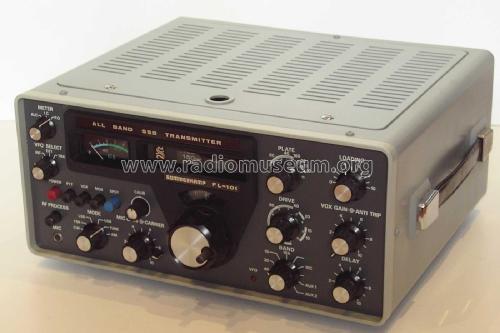

Transmitter FL-101; Sommerkamp (ID = 2610958) Amateur-T
Sommerkamp: Transmitter FL-101 [Amateur-T] ID = 2610958 1400x934
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transmitter FL-101, Sommerkamp

Country:  Germany
Manufacturer / Brand:  Sommerkamp
alternative name

Sommerkamp El. Schweiz
Year: 1974–1978 Category: Amateur Transmitter (only)
Valves / Tubes 3: 12BY7A 6JS6C 6JS6C
Semiconductors (the count is only for transistors) 16:
Main principle Transmitter
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 117; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Transmitter FL-101 - Sommerkamp
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 370 x 150 x 290 mm / 14.6 x 5.9 x 11.4 inch
Notes

Amateurfunkbänder 160m - 10m, SSB, AM, CW, RTTY mit 170 Hz Shift.
Ausgangsleistung 100 W bei SSB und CW, 25 W bei AM und RTTY

Siehe auch Yaesu FL-101

Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Price in first year of sale 2'270.00 DM
Mentioned in -- Original-techn. papers.

Model page created by Ottmar Rollmann. See "Data change" for further contributors.
