• Year
  • 1959
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 153931

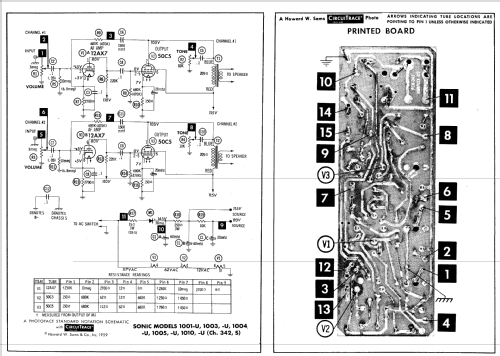

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 1004-U Ch= 342 - Sonic Industries Inc.; New
  • Shape
  • Console with any shape - in general
  • Notes
  • The Sonic Model 1004-U is an AC Operated 3 Tube Stereo Amplifier.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
