2020 Ch= 19 Ch= 344
Sonic Industries Inc.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sonic Industries Inc.; New York, NY
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 146329
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 2020 Ch= 19 Ch= 344 - Sonic Industries Inc.; New
- Notes

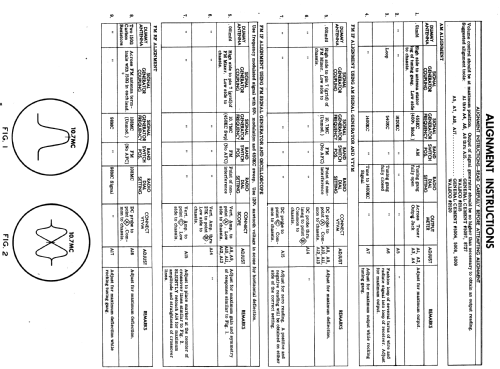

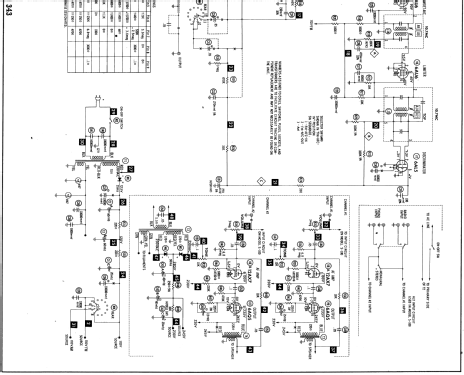

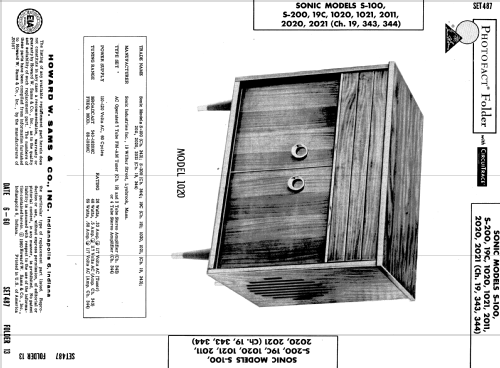

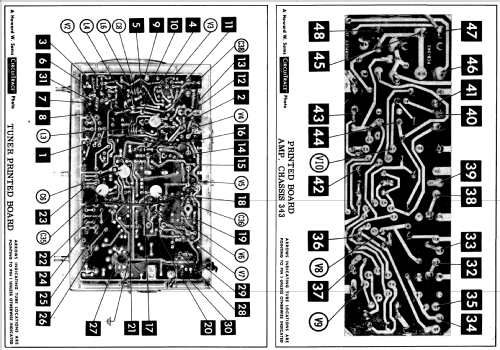

- Sams photofact set 487 folder 13 date 6-60 features the Sonic models S-100, S-200 with chassis 343, 19C with chassis 19, 1020, 1021 with chassis 19 and 343, 2011,2020, 2021 with chassis 19 and 344 as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 487 folder 13 date 6-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
