- Country
- Belgium
- Manufacturer / Brand
- Soniclair; Bruxelles
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 237136
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 123 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Power out
- 2.7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

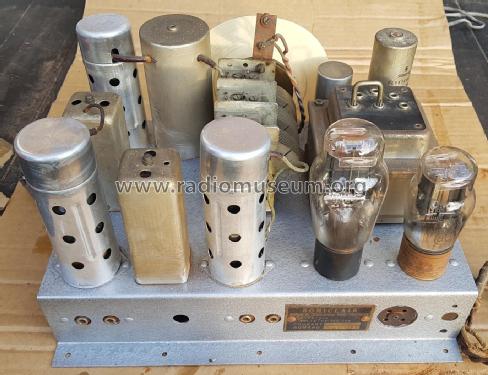

- Model: 536 - Soniclair; Bruxelles
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 550 x 300 x 265 mm / 21.7 x 11.8 x 10.4 inch
- Notes
-
This model was also available with tuning indicator as 536 Luxe.
A version apparently sold by E. de Ryck has a different cabinet, see 536.
- Price in first year of sale
- 1,850.00 BEF
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Dirk Bladt. See "Data change" for further contributors.
