Soniclair Super 636

Soniclair Super 636; Soniclair; Bruxelles (ID = 150883) Radio Soniclair Super 636; Soniclair; Bruxelles (ID = 150886) Radio
Soniclair Super 636; Soniclair; Bruxelles (ID = 150893) Radio Soniclair Super 636; Soniclair; Bruxelles (ID = 150884) Radio
Soniclair Super 636; Soniclair; Bruxelles (ID = 150888) Radio Soniclair Super 636; Soniclair; Bruxelles (ID = 150892) Radio
Soniclair Super 636; Soniclair; Bruxelles (ID = 150895) Radio Soniclair Super 636; Soniclair; Bruxelles (ID = 150898) Radio
Soniclair Super 636; Soniclair; Bruxelles (ID = 150899) Radio Soniclair Super 636; Soniclair; Bruxelles (ID = 1952875) Radio
Use red slider bar for more.
Soniclair Super 636; Soniclair; Bruxelles (ID = 150883) Radio
Soniclair; Bruxelles: Soniclair Super 636 [Radio] ID = 150883 602x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Soniclair Super 636, Soniclair; Bruxelles

Country:  Belgium
Manufacturer / Brand:  Soniclair; Bruxelles
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 78 78 75 43 43
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110, 130, 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Soniclair Super 636 - Soniclair; Bruxelles
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 412 x 485 x 315 mm / 16.2 x 19.1 x 12.4 inch

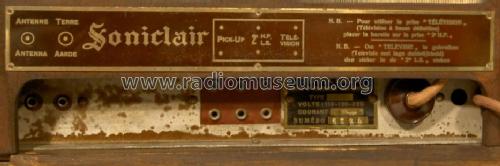

Notes Kein Röhrengleichrichter Marc Verschooris has the same set with a tube line up of: 2A6, 2A7, 47, 58, 58 and 80. Special output connectors for an early (mechanical) TV set,
Source of data - - Data from my own collection

Model page created by Christian ADAM. See "Data change" for further contributors.
