Sélection 47

Sélection 47; Sonneclair, (ID = 1452922) Radio Sélection 47; Sonneclair, (ID = 1452925) Radio
Sélection 47; Sonneclair, (ID = 1452927) Radio Sélection 47; Sonneclair, (ID = 1452932) Radio
Use red slider bar for more.
Sélection 47; Sonneclair, (ID = 1452922) Radio
Sonneclair,: Sélection 47 [Radio] ID = 1452922 700x645
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sélection 47, Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge:

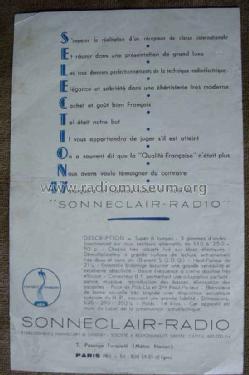

aus Werbezettel/Publicite

Country:  France
Manufacturer / Brand:  Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH3 EBF2 EF9 EL3 EM4 1883
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Sélection 47 - Sonneclair, Hannecart & Dannay
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 620 x 350 x 290 mm / 24.4 x 13.8 x 11.4 inch
Notes

3 gammes d'ondes. BF à contre-réaction. Correcteur BF. Prises pick-up et HP supplémentaire.

Ébénisterie avec disposition acoustique spéciale du HP.

Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Mentioned in -- Original prospect or advert

Model page created by Eddy Rischmann. See "Data change" for further contributors.



All listed radios etc. from Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge
Here you find 119 models, 101 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
