Selection 48

Selection 48; Sonneclair, (ID = 1806535) Radio Selection 48; Sonneclair, (ID = 1806536) Radio
Selection 48; Sonneclair, (ID = 1806538) Radio Selection 48; Sonneclair, (ID = 1228836) Radio
Selection 48; Sonneclair, (ID = 1228837) Radio Selection 48; Sonneclair, (ID = 1228838) Radio
Use red slider bar for more.

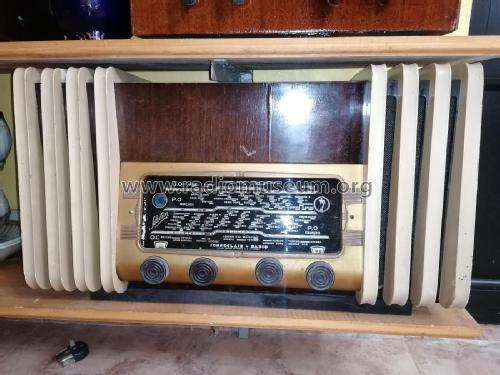

Selection 48; Sonneclair, (ID = 1806535) Radio
Sonneclair,: Selection 48 [Radio] ID = 1806535 1134x850
Select picture or schematic to display from thumbnails on the right and click for download.
For model Selection 48, Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge

Country:  France
Manufacturer / Brand:  Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge
Year: 1948 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF9 EBF2 EL3 EM4 RGN1882
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20.5 cm = 8.1 inch
Power out
from Radiomuseum.org Model: Selection 48 - Sonneclair, Hannecart & Dannay
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 620 x 350 x 295 mm / 24.4 x 13.8 x 11.6 inch
Notes Schräg eingebauter Lautsprecher.
Net weight (2.2 lb = 1 kg) 12.6 kg / 27 lb 12.1 oz (27.753 lb)
Source of data - - Data from my own collection

Model page created by Albert Walenta. See "Data change" for further contributors.



All listed radios etc. from Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge
Here you find 119 models, 101 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
