Baladin

Baladin ; Sonolor; Paris, La (ID = 2535170) Radio
Baladin ; Sonolor; Paris, La (ID = 1216908) Radio Baladin ; Sonolor; Paris, La (ID = 1216907) Radio
Baladin ; Sonolor; Paris, La (ID = 1216906) Radio
Use red slider bar for more.

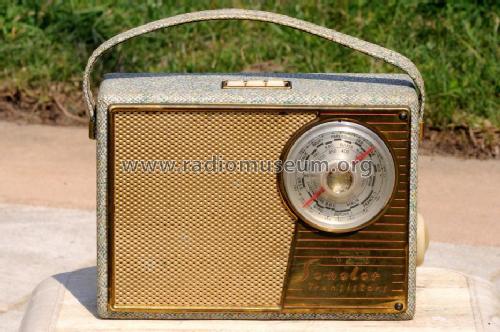

Baladin ; Sonolor; Paris, La (ID = 1216908) Radio
Sonolor; Paris, La: Baladin [Radio] ID = 1216908 933x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baladin, Sonolor; Paris, La Courneuve

Country:  France
Manufacturer / Brand:  Sonolor; Paris, La Courneuve
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: SFT108 SFT106 SFT107 SFT152 SFT122 or. SFT123 SFT122 or. SFT123 OA70
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Baladin - Sonolor; Paris, La Courneuve
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 160 x 80 mm / 8.7 x 6.3 x 3.1 inch
Net weight (2.2 lb = 1 kg) 1.750 kg / 3 lb 13.7 oz (3.855 lb)

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
