• Country
• France

• Manufacturer / Brand
• Sonolor; Paris, La Courneuve

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 321745

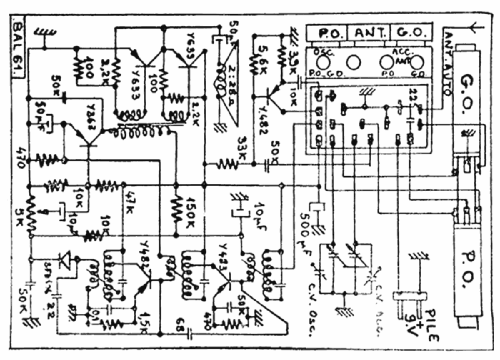

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• Y482 Y423 Y482 Y363 Y633 Y633 unknown_diode

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Baladin 61 - Sonolor; Paris, La Courneuve

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 160 x 80 mm / 8.7 x 6.3 x 3.1 inch

• Notes

• Récepteur superhétérodyne à 6 transistors germanium, diode en détection.

  Boitier bois gainé.

• Author
• Model page created by Philippe Eckenschwiller. See "Data change" for further contributors.
