Inconnu - Unknown 1

Inconnu - Unknown 1 ; Sonolor; Paris, La (ID = 285641) Radio Inconnu - Unknown 1 ; Sonolor; Paris, La (ID = 285642) Radio

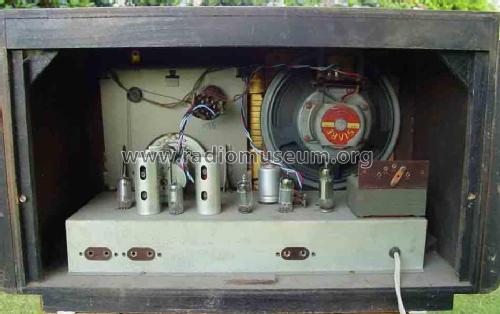

Inconnu - Unknown 1 ; Sonolor; Paris, La (ID = 285643) Radio
Use red slider bar for more.
Inconnu - Unknown 1 ; Sonolor; Paris, La (ID = 285641) Radio
Sonolor; Paris, La: Inconnu - Unknown 1 [Radio] ID = 285641 933x466
Select picture or schematic to display from thumbnails on the right and click for download.
For model Inconnu - Unknown 1, Sonolor; Paris, La Courneuve

Country:  France
Manufacturer / Brand:  Sonolor; Paris, La Courneuve
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BE6 6BA6 6AV6 6AQ5 6E5 6X4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: Inconnu - Unknown 1 - Sonolor; Paris, La Courneuve
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 645 x 330 x 290 mm / 25.4 x 13 x 11.4 inch
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)

Model page created by Jozef Brughmans †. See "Data change" for further contributors.



All listed radios etc. from Sonolor; Paris, La Courneuve
Here you find 91 models, 79 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
