Joker

Joker ; Sonolor; Paris, La (ID = 2595983) Radio Joker ; Sonolor; Paris, La (ID = 2595986) Radio
Joker ; Sonolor; Paris, La (ID = 2595985) Radio Joker ; Sonolor; Paris, La (ID = 2595984) Radio
Joker ; Sonolor; Paris, La (ID = 2349940) Radio
Use red slider bar for more.
Joker ; Sonolor; Paris, La (ID = 2595983) Radio
Sonolor; Paris, La: Joker [Radio] ID = 2595983 1400x587
Select picture or schematic to display from thumbnails on the right and click for download.
For model Joker, Sonolor; Paris, La Courneuve

Country:  France
Manufacturer / Brand:  Sonolor; Paris, La Courneuve
Year: 1971 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: SFT353 SFT323 SFT323 SFT308 SFT319 SFT319
Main principle Superheterodyne (common); ZF/IF 484 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / AA; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Joker - Sonolor; Paris, La Courneuve
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 170 x 85 x 40 mm / 6.7 x 3.3 x 1.6 inch
Notes

2 gammes d'ondes. Coffret entièrement gainé.

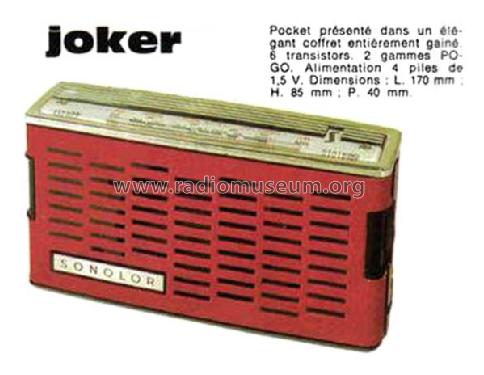

Mentioned in -- Original prospect or advert (Catalogue ca. 1971)

Model page created by Mark Hippenstiel. See "Data change" for further contributors.



All listed radios etc. from Sonolor; Paris, La Courneuve
Here you find 91 models, 79 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
