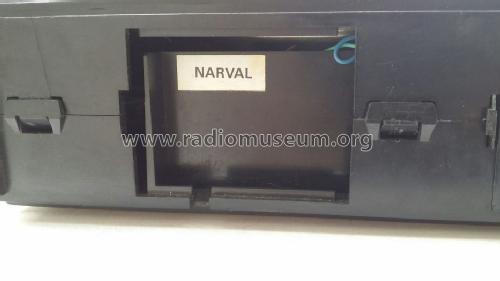

Narval ; Sonolor; Paris, La (ID = 1879079) Radio Narval ; Sonolor; Paris, La (ID = 1879080) Radio
Use red slider bar for more.
Narval ; Sonolor; Paris, La (ID = 1879077) Radio
Sonolor; Paris, La: Narval [Radio] ID = 1879077 933x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Narval, Sonolor; Paris, La Courneuve

Country:  France
Manufacturer / Brand:  Sonolor; Paris, La Courneuve
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: BF233 BF233 BF233 TBA820
Main principle Superheterodyne (common); 1 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Line / Batteries (any type) / AC: 127; 220 / BATT: 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.9 W (1.5 W max.)
from Radiomuseum.org Model: Narval - Sonolor; Paris, La Courneuve
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 175 x 80 mm / 10.2 x 6.9 x 3.1 inch
Notes

1 integrated circuit TBA820. Antenne ferrite incorporée.

3 stations préselectionnées: LUX, EU1 et FR1.

Model page created by Didier Tholomier. See "Data change" for further contributors.
