Plein Air 7
Use red slider bar for more.

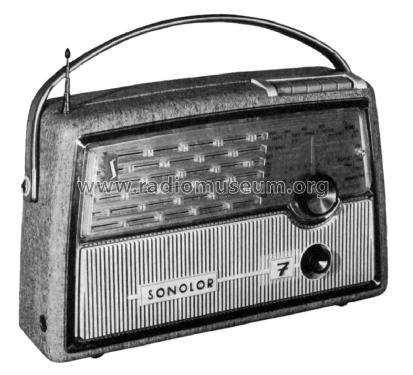

Sonolor; Paris, La: Plein Air 7 [Radio] ID = 2349916 1200x1089
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1962 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 7: SFT317 SFT319 SFT319 SFT351 SFT352 SFT321 SFT321 SFD107 |
|---|
| Main principle | Superheterodyne (common); 3 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 2 x 4.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch |
| Power out | |
| from Radiomuseum.org | Model: Plein Air 7 - Sonolor; Paris, La Courneuve |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Notes | 3 gammes d'ondes. Cadre ferrite. Clavier 5 touches. HP Z = 28 ohms. Coffret gainage 4 coloris, arrière souple anti-choc. Distributed in the UK by Denham & Morely, Ltd. |
| Literature/Schematics (1) | Radio And Television Servicing books (R&TVS) |
| Literature/Schematics (2) | -- Original prospect or advert (Radio Électronique Professionnelle, Avril 1962) |
Model page created by Keith Staines. See "Data change" for further contributors.
