Rafale

Rafale ; Sonolor; Paris, La (ID = 307021) Radio Rafale ; Sonolor; Paris, La (ID = 307022) Radio

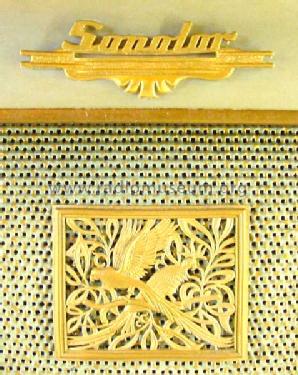

Rafale ; Sonolor; Paris, La (ID = 307023) Radio Rafale ; Sonolor; Paris, La (ID = 307024) Radio

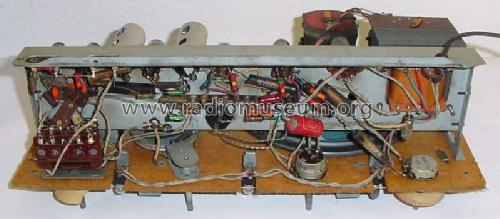

Rafale ; Sonolor; Paris, La (ID = 307025) Radio
Use red slider bar for more.
Rafale ; Sonolor; Paris, La (ID = 307021) Radio
Sonolor; Paris, La: Rafale [Radio] ID = 307021 800x559
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rafale, Sonolor; Paris, La Courneuve

Country:  France
Manufacturer / Brand:  Sonolor; Paris, La Courneuve
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6BA6 6BE6 6BA6 6AV6 6AF7 EL90 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Rafale - Sonolor; Paris, La Courneuve
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 560 x 340 x 210 mm / 22 x 13.4 x 8.3 inch
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data - - Data from my own collection

Model page created by Franz-Josef Haffner. See "Data change" for further contributors.



All listed radios etc. from Sonolor; Paris, La Courneuve
Here you find 91 models, 79 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
