Régate 2245

Régate 2245; Sonolor; Paris, La (ID = 2260566) Radio Régate 2245; Sonolor; Paris, La (ID = 2260567) Radio
Régate 2245; Sonolor; Paris, La (ID = 1238681) Radio Régate 2245; Sonolor; Paris, La (ID = 1238682) Radio
Régate 2245; Sonolor; Paris, La (ID = 1238683) Radio Régate 2245; Sonolor; Paris, La (ID = 1238684) Radio

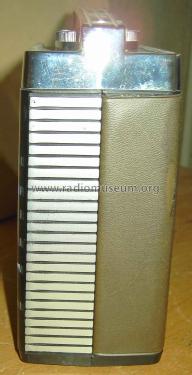

Régate 2245; Sonolor; Paris, La (ID = 1238685) Radio Régate 2245; Sonolor; Paris, La (ID = 1238686) Radio
Régate 2245; Sonolor; Paris, La (ID = 1238687) Radio Régate 2245; Sonolor; Paris, La (ID = 1238688) Radio
Use red slider bar for more.
Régate 2245; Sonolor; Paris, La (ID = 2260566) Radio
Sonolor; Paris, La: Régate 2245 [Radio] ID = 2260566 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model Régate 2245, Sonolor; Paris, La Courneuve

Country:  France
Manufacturer / Brand:  Sonolor; Paris, La Courneuve
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF137 AF137 AF137 AC122 AC131 AC131 AA112
Main principle Superheterodyne (common); ZF/IF 480 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 4.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out 0.45 W (unknown quality)
from Radiomuseum.org Model: Régate 2245 - Sonolor; Paris, La Courneuve
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 180 x 70 mm / 9.8 x 7.1 x 2.8 inch
Notes

6 transistors + 1 diode. 2 gammes d'ondes : PO de 520 à 1620 kHz, GO de 148 à 270 kHz. Clavier 6 touches dont 3 stations pré-réglées France 1, Europe 1 et Luxembourg. Commutation cadre/antenne voiture. Hp inversé Z = 20 ohms.

Coffre gainé anti-chocs.

Équivalent au Visseaux Aubade.

Le document technique specifie les gammes PO de 320 à 1620 kHz et GO de 148 à 470 kHz. Dans le depliant Sonolor, le cadran a une présentation légèrement différente.

Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Reinhard Riek. See "Data change" for further contributors.
