Super-Swing GT
Sonolor; Paris, La Courneuve
- Country
- France
- Manufacturer / Brand
- Sonolor; Paris, La Courneuve
- Year
- 1975–1977
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 269138

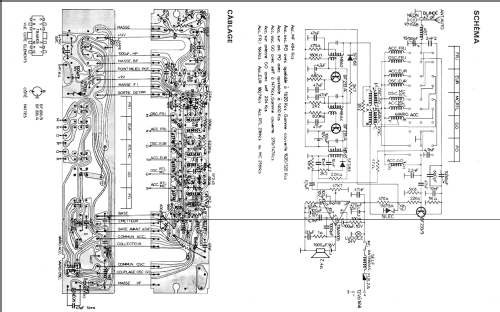

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common); ZF/IF 478 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 5 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Super-Swing GT - Sonolor; Paris, La Courneuve
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 185 x 45 x 40 mm / 7.3 x 1.8 x 1.6 inch
- Notes
-
2 gammes d'ondes: PO de 520 à 1620 kHz, GO 148 à 267 kHz. 3 stations préréglées: France Inter, Europe 1, RTL. Haut-parleur elliptique de 12 x 19 cm, dans unité séparé.
Coffret givré noir, décor chromé. Peut être intégré dans le tableau de bord du voiture, ou sur toute autre surface.
Very compact car radio, can be mounted on any suitable surface.
- Mentioned in
- -- Original-techn. papers.
